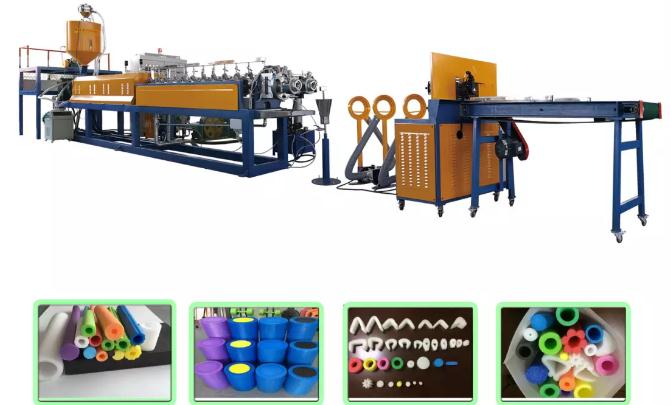

EPE Air conditioning insulation pipe extrusion machine/production line/foam tube making machine
EPE foam machine can make different foam sheet width and thickness according to customer requirement. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile and so on through changing mould and machine parts.
The raw material of EPE foam pipe extrusion line(EPE Air conditioning insulation pipe production line,foam tube making machine) is low density polyethylene resin which is fed into the extruder with screw L/D 55:1 by automatic loading equipment. Fill with the anti-shrinking agent and foaming agent under high pressure. After cooling, extruding, it can produce the foam pipe.
EPE Air conditioning insulation pipe extrusion machine/production line/foam tube making machine parameter:
Type | Unit | PEG-70 | PEG-75 | PEG-90 | PEG-105 | PEG-120 |
L/D |
| 55:1 | 55:1 | 55:1 | 55:1 | 55:1 |
Screw speed | r/min | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
Foaming rate |
| 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
Specification | mm | 20-40 | 20-50 | 30-80 | 40-100 | 50-120 |
Cooling method |
| Water cooling | ||||
Installed capacity | kw | 36 | 70 | 90 | 100 | 120 |
Dimension | m | 15×1.3×1.7 | 16×1.3×1.7 | 18×1.6×2 | 20×1.80×2 | 22×2×2 |
Total weight | t | 6 | 6.5 | 8 | 9 | 10 |
Features of EPE foam pipe extrusion line(EPE Air conditioning insulation pipe production line,foam tube making machine) :
1:Loading automatically,alarming automatically
2:It adopts Italy talcum powder automatic injection system with double-screw which is controlled by transducer, and makes the talcum powder enter into the extruder steadily and accurately
3:It adopts circulating water cooling method to make the temperature more steady and cool quickly
4:Die pressure control adopts diaphragm pressure gauge and equipped with die temperature display in order to guarantee its stability.
EPE foam pipe is a new type of foam material, it is widely used in air conditioner jacket, pipeline heat insulation, toy guardrail and recreation places due to its high foam ratio,good elasticity and heat preservation.
EPE foam pipe extrusion line features:
-- V.F driving for speed regulation. Tandem screw with independent heating zones to insure easy operation, easy trouble shooting, precise heating and curing.
-- OMRON temperature control system. Stable and reliable.
-- Circulation water cooling. (Water tower, user to add)
-- The head employed automatic screen exchange system (with a hydraulic station) to save time and reduce wastage. About 30% may be saved.
-- Mold pressure control employed digital display and a septum pressure gage. The two systems insure stable top sheet quality.
-- Winder may overturn automatically. With meter counter for length pre-setting. Winding width is adjustable.
-- High foaming times. Imported temperature control system
