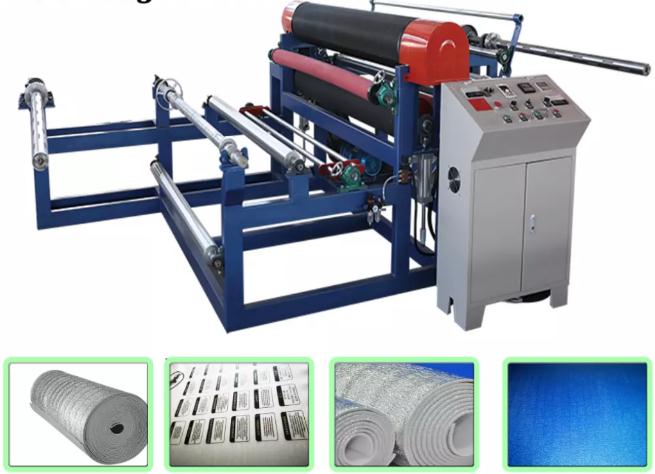

PE FOAM TO FILM LAMINATION MACHINE
COMPONENTS OF PE FOAM TO FILM LAMINATION MACHINE
Emboss lamination part unit
Inverter driving unit
Flame heating unit (PTL-FL)
Hot air heater unit (PTL-OH)
Oil heating roller unit (PTL-HA) Film hanger unit
Pull roller unit
Trimming unit
Re/Un winder unit (Option)
Main Parameters OF PE FOAM TO FILM LAMINATION MACHINE:
Model | Dimension(m) | Main Motor | Total Power(kw) | Max Processing |
FM-1400 | 4.5*1.8*1.2 | 1.5 | 25 | 1400 |
FM-1600 | 4.5*2.0*1.2 | 2.2 | 28 | 1600 |
FM-1800 | 4.5*2.2*.1.2 | 4 | 35 | 1800 |
FM-2000 | 4.5*2.3*.1.2 | 4 | 40 | 2000 |
By subscribing to our mailing list you will always be updated with the latest news from us.
PE foam to film lamination machine is basically roll to roll sheet lamination process and each types has a different laminating process depending on consumer needs. As per foam materials, there are flame lamination, electrical oil heating and hot air laminating. Laminating film is applicable HDPE, LLDPE, Aluminum foil (AL) with coated by polyethylene resin and metalized pet films (MPET).
The PE foam to film lamination machine can increase intensity, waterproof smooth of foam sheet, and can print character, picture, improving the products, is widely used for the packing of box lining, life vest, wooden floor cushion. Car Havelock, Motor adumbral cushion, electronic appliance, high-top china and so on.
